Thermac Type E Heat Detector

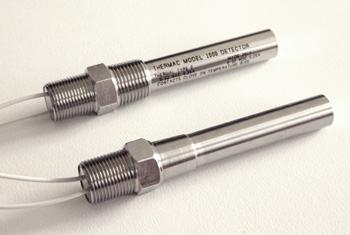

Thermac Type E Heat Detector Probe

PDF document downloads:

Data Sheet

Service Life

Detector Testing


Approvals

• AS1603.1-1995 TESTED - Type E HEAT DETECTOR

• ACTIVEFIRE LISTED (CSIRO Aust. Govt.)

• PATENT No. 699529


Features

• RESETTING TYPE HEAT DETECTOR
• RATE COMPENSATION & FAST RESPONSE
• WIDE TEMPERATURE RANGE.
• GOLD PLATED ELECTRICAL CONTACTS.
• CORROSION & SHOCK RESISTANT.
• SINGLE MOUNTING THREAD - Model 1000 - 1 Metric M20
• DUAL MOUNTING THREAD - Model 1000 - 2 Metric M20 & ½”NPT
• INTRINSICALLY SAFE: Classed as a simple apparatus and installed with a suitable I.S. barrier.

Description

The Thermac Detector is a heat sensitive electrical switch.
It is a fixed temperature device with a factory pre-set temperature in the range 60 ºC to 240 ºC.
The detector comprises a pair of normally open electrical contacts mounted within a stainless steel probe. A rise in temperature will cause the contacts to close at the set point temperature. With a drop in temperature the procedure reverses and the contacts re-open below the set point temperature.
The detector body is a seamless one-piece unit, precision machined from AISI 316 stainless steel with high corrosion resistance. Electrical contacts are gold/silver plated and lead cables are nickel plated copper with PTFE/glass insulation. Cables are to aircraft engine specification.
The operating parts are factory calibrated and sealed against severe environmental conditions, further adjustment or calibration is not required.

Specification

Contacts: ...............................................Normally open, close on temperature rise.
Applied Voltage AC @ 0.25A ..............................32 V max.
Applied Voltage DC @ 0.25A ..............................32 V max.
Operating Current:.......................................0.25A max.
Operating or Set Temperature Range:.....................+60º C to +240º C
Ambient Temperature Range: (continuous exposure) .......-40º C to +180º C
Relative Humidity:.......................................100%
Weight: .................................................150g.
Degree of Protection: .................................. IP 67
Sensitivity & Accuracy:..................................+/- 5% or 5 degrees
Mounting Screw Threads:..................................10 Nm torque max.

NOTES:
1. All electrical ratings apply to noninductive loads. Ensure circuit inrush currents do not exceed ratings.
2. Where a detector has been subjected to a fire or overheat, the unit should be returned to Thermac for condition check and calibration.

Temperature Settings

- Degrees Celsius

Detectors may be set to any nominated operating temperature between 60º and 240º Celsius.
Suggested temperature setting 20ºC above maximum ambient.

Installation

Installation of Model 1000

To Order

Please specify Set Temperature (degrees Celsius)

eg. TYPE E HEAT DETECTOR, MODEL 1000 - 1 @ 120ºC,

Manufactured By
THERMAC PTY. LTD.

Information is subject to change without notice. DOC 41 Iss. 19
